Breakoutbox
€199.00*
Available, delivery time: 1-3 days
Zubehörartikel
from €269.00*
€319.00*
from €479.00*
from €269.00*
€228.99*
| item number: | 1051123 |
| Product number: | CB00216 |
Product information "Breakoutbox"

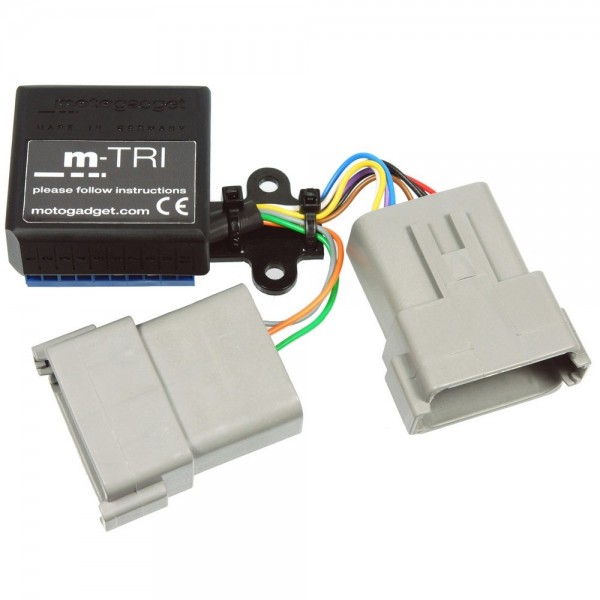

Motogadget. Break-Out Box. For connecting Motogadget instruments to the injection models with electronic speedometer.
Tested by us for 2010/11+2012/13/14/15.
Please state motorcycle type and chassis number when ordering! It does not need to be soldered, but must be connected consistently according to our enclosed instructions.
The CAN bus installed in the Triumph models reacted immediately by refusing to work if the original instrument was no longer connected. This meant that the desired conversions were hardly possible at this point. The solution, especially for the Twins, is now exclusively available: the mo.tri from motogadget. In addition to information such as speed and rpm, the mo.tri also provides signals for indicator lights: Blinker left/right, tank reserve, fault memory, high beam, neutral, H2O hot, oil pressure.
Some indicator lights on instruments with 4 or 5 LEDs have multiple functions. Another big advantage is the almost foolproof installation! The original connector is used and the cables for the instrument and indicator lights are connected to the terminals of the mo.tri using a color scheme. No soldering or searching for cables required. No intervention in the wiring harness. No loss of vehicle warranty. Fast Plug 'n Ride, it couldn't be easier. A big time saver and therefore worth hard cash.
PLEASE STATE YEAR OF MANUFACTURE AND CHASSIS NUMBER!
| Models Triumph AC until 2015: |
|
|---|
| Triumph AC bis 2015 |
Bonneville SE Gussrad
Bonneville T100 EFI
Scrambler EFI
Thruxton 900 EFI
|
|---|
8
8
8
8
There aren't any asked questions yet.
Zubehörartikel
Motogadget Motoscope Tiny
CB00227M
/ RS7
€269.00*
The motoscope tiny is a very small analog speedometer in 49mm format. It measures the speed digitally and displays it precisely via a stepper motor and pointer. The installation diameter of 49 mm and the installation depth of only 24 mm open up a wide range of possibilities for installation. Sophisticated technology makes the classic look possible without compromise. The dial does without any display cut-out or LCD and has a convincing classic-style look. The perfect solution for purists and minimalists.
Classicbike-Raisch offers some special mounting plates and materials for Motogadget instruments (you can find them all under the accessories in this description).Also, an additional box is needed to connect the speedometers on many bikes (also found under the accessories).Model specific descriptions can be found below the general description.
The high quality aluminum housing is turned from solid and its surface is black anodized. The screw ring is also available black anodized or mirror polished. The case is 100% waterproof and insensitive to vibrations.
The analog dial in black and white contrast is indirectly illuminated by white LEDs. Hidden behind the black part of the dial is an innovative LED display that only shines through the dial when in operation and is not visible when switched off.
To achieve optimal readability in dark, sunny and twilight conditions, the luminosity of the LEDs is automatically adjusted. If the 200 km/h on the analog scale is exceeded, the speed is automatically shown on the LED display. Likewise, the maximum speed is stored. The 4 indicator lights (blue, red, 2 x green) are also integrated in the dial. These also only become visible during operation.
Motogadget mst Vintage
CB00235
/ RS6
€319.00*
Motoscope mst Vinatge. It will never be more classic. Screw ring and hands made of solid brass. The handmade, used look is slightly different on each instrument and makes it unique. "Genuine Manufacture Quality Made in Germany".
Classicbike-Raisch offers some special mounting plates and materials for Motogadget instruments (you can find them all under the accessories in this description).In addition, an additional box is needed to connect the speedometers on many motorcycles (also found under the accessories).Model specific descriptions can be found below the general description.
Technically the instrument is identical to the motoscope tiny. The dial is based on the streamline design of the forties and fifties. Matching to this, it is kept in a warmer white. The shape of the hand matches the dial and is made of brushed stainless steel, and the screw ring is also available here in a polished or black anodized finish.
All other features and technical data of the instrument correspond to the motoscope tiny.
The analog dial in black and white contrast is indirectly illuminated by white LEDs. Hidden behind the black part of the dial is an innovative LED display that only shines through the dial when in operation and is not visible when switched off. To achieve optimal readability in dark, sunny and twilight conditions, the luminosity of the LEDs is automatically adjusted. If the 200 km/h on the analog scale is exceeded, the speed is automatically shown on the LED display. Likewise, the maximum speed is stored.
The four indicator lights (blue, red, 2 x green) are also integrated in the dial. These also only become visible during operation.With the supplied menu button or e.g. the light horn button on the handlebars is switched between the displays of the LED display. These LEDs can display all the things that the original speedometer also displays.The default indication on the display is the time. If required, a short press of the button will display the values for total kilometers, trip kilometers, on-board voltage, etc. All functions, such as resetting the trip kilometers or similar, are easy to operate via the pushbutton. Presettings or stored values remain saved even without power supply. Translated with www.DeepL.com/Translator (free version)
Motogadget ChronoClassic
CB00209M
/ RS4
€479.00*
The Chronoclassic speedo from motogadget is an analog speedometer with many digital additional functions in a classic round case.
Classicbike-Raisch offers some special mounting plates and materials for motogadget instruments (you can find them all under the accessories in this description).Also, an additional box is needed to connect the tachometers on many motorcycles (also found under the accessories).Model specific descriptions can be found below the general description.
Another special feature is the dark LC display on the DarkEdition. It gives the instrument an even more harmonious appearance.However, we expressly point out that the readability is reduced in direct sunlight. If you value the best possible readability, please go for the green standard display.The technically identical instrument is also available with a white dial (see motoscope classic speedo) or as an analog tachometer (see analog DZM series CLASSIC).
Motogadget ist Speedster
CB00234M
/ RS5
€269.00*
Motoscope mst speedster
The mst speedster is a small analog speedometer in an attractive retro design. Technically the instrument is identical to the motoscope tiny. The dial is based on the streamline design of the forties and fifties. Matching to this, it is kept in a warmer white. The shape of the hand matches the dial and is made of brushed stainless steel, and the screw ring is also available here polished or black anodized. Classicbike-Raisch offers some special mounting plates and materials for Motogadget instruments (you can find them all under the accessories in this description).Also, an additional box is needed to connect the speedometers on many motorcycles (also found under the accessories).Model specific descriptions can be found below the general description.
All other features and technical data of the instrument correspond to the motoscope tiny.The analog dial in black and white contrast is indirectly illuminated by white LEDs. Hidden behind the black part of the dial is an innovative LED display that only shines through the dial when in use and is not visible when switched off. To achieve optimal readability in dark, sunny and twilight conditions, the luminosity of the LEDs is automatically adjusted. If the 200 km/h on the analog scale is exceeded, the speed is automatically shown on the LED display. Likewise, the maximum speed is stored.
The four indicator lights (blue, red, 2 x green) are also integrated in the dial. These also only become visible during operation.With the supplied menu button or e.g. the light horn button on the handlebars is switched between the displays of the LED display. These LEDs can display all the things that the original speedometer also displays.The default indication on the display is the time. If required, a short press of the button will display the values for total kilometers, trip kilometers, on-board voltage, etc. All functions, such as resetting the trip odometer or similar, are easy to operate via the pushbutton. Presettings or stored values remain saved even without power supply.
Motoscope Mini
CB00252
/ RS7
€228.99*
Motoscope mini black. It doesn't get any smaller than this. With integrated tachometer.
Classicbike-Raisch offers some special mounting plates and materials for Motogadget instruments (you can find them all under the accessory items in this description).Also, an additional box is needed to connect the tachometers on many motorcycles (also found under the accessories).Model specific descriptions can be found below the general description.
The motoscope mini is an extremely small, digital motorcycle instrument. The LED display, which was specially developed by us for this purpose, is unique in the instrument sector. 251 ultra-bright LEDs form an almost rimless, outstandingly readable display surface, which can be used completely for the representation of the display values. Only this innovative, elaborate technology enables a maximum display area with minimum housing dimensions at the same time.
The motoscope mini fits almost any two-, three- or four-wheeler due to its very simple, elegant design and high-quality appearance. It can support the styling in an exposed position, but can also be integrated inconspicuously and 'cleanly' - everything is possible with the mini! The innovative dot matrix of 251 ultra-bright LEDs displays the engine speed by means of a scalable, horizontal luminous band and all other functions as a numerical value in an easily detectable manner. The speed can also be called up as a numerical value at the touch of a button. To achieve optimum readability in darkness, sunlight and twilight, the luminosity of the LEDs is automatically adjusted. A speed value can be entered for the limit range of the permissible speed ('red range') or as a switching flash function. If this value is exceeded, all LEDs light up pulsatingly at the same time.
The highlight: the display of the motoscope mini can show the numerical values not only from left to right, but also from top to bottom. Therefore, the instrument can also be mounted upright! With the supplied menu button or e.g. the light horn button on the handlebars is switched between the displays. The standard indication on the display is the speed value. The other measured values can be fetched on the display by a short keystroke if required. Optionally, it can be set that the display automatically returns to the speed value after a short time or that a specific display is fixed.
Presets or stored values remain of course stored even without power supply.For all bikes with LCD speedometer a break out box is needed: to the article
As a replacement to the not so nice speedo snail we have a spacer Translated with
