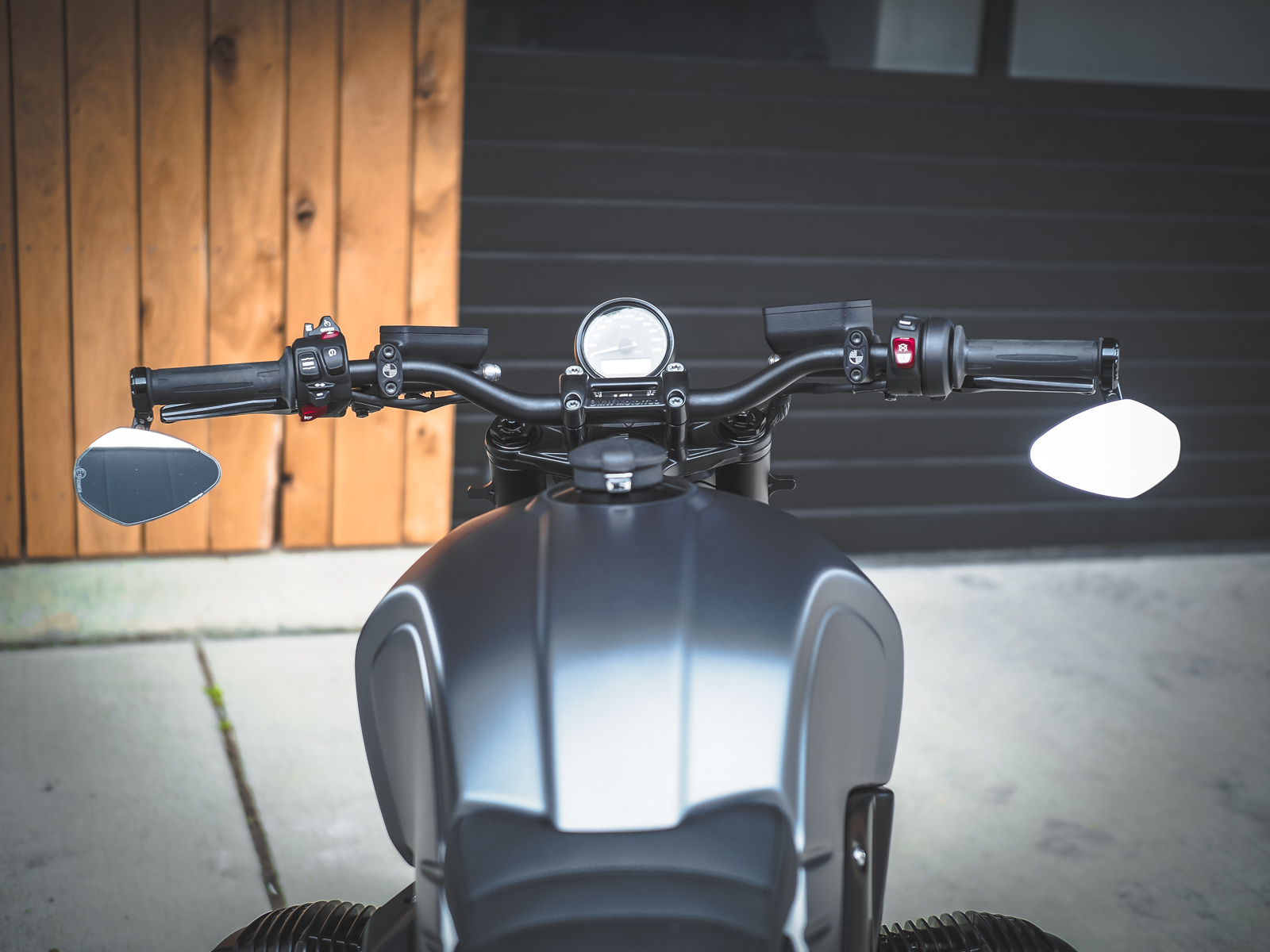

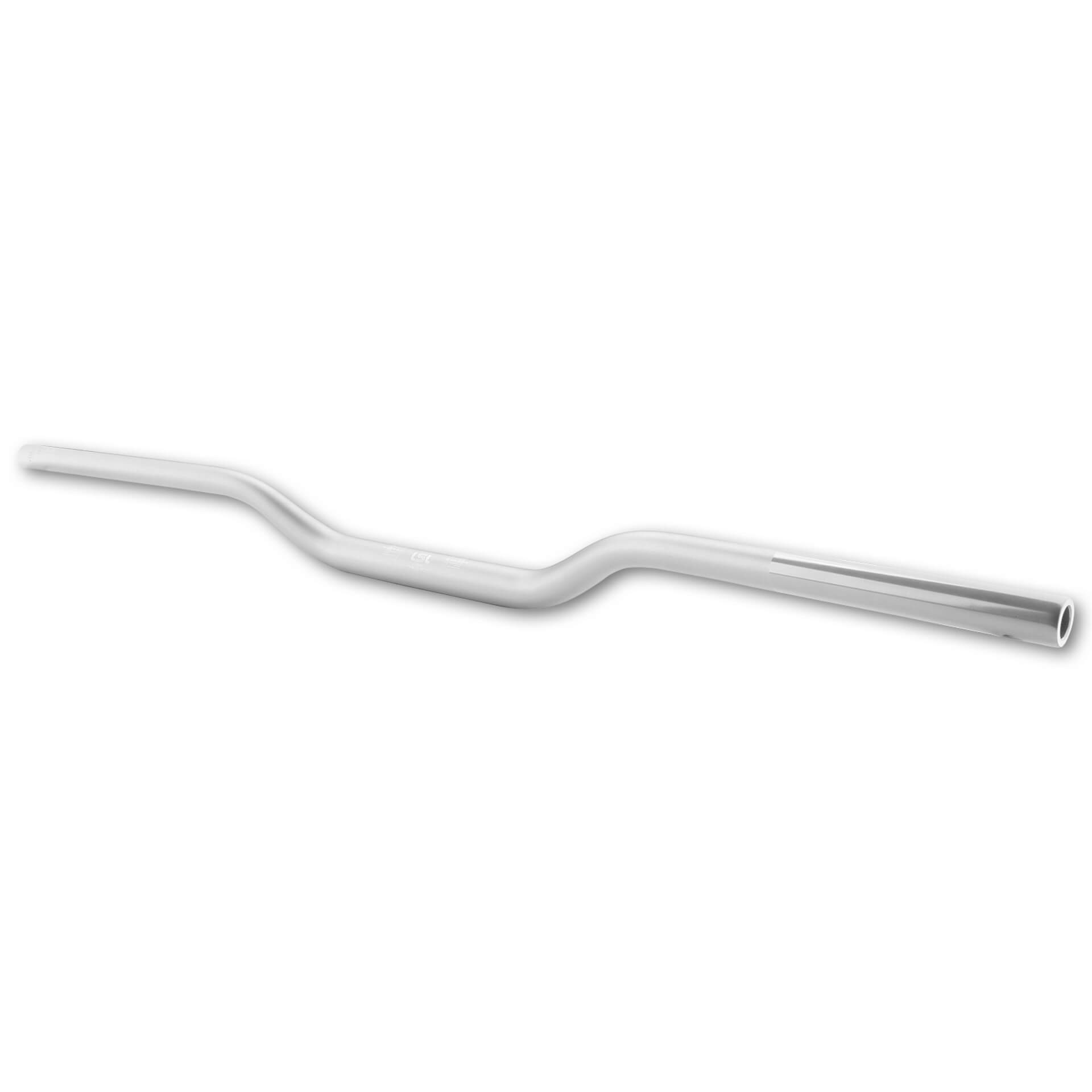

Adventure handlebars - 805mm

Skip image gallery

€89.95*

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

item number: 128AX04SI
Shop-number: CB12456M

Product information "Adventure handlebars - 805mm"

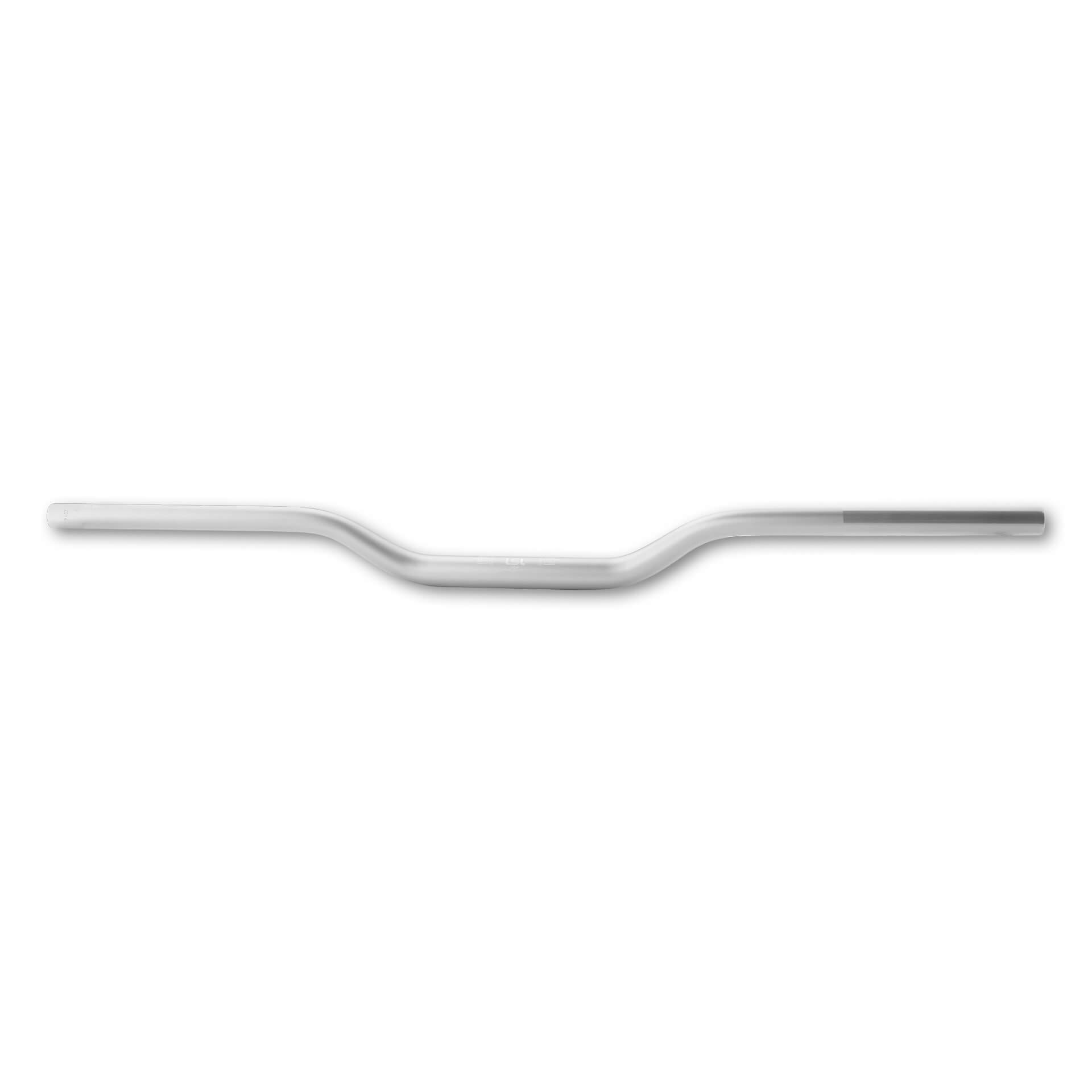

The Adventure handlebars are just the thing for anyone who wants a handlebar that looks really cool but is still comfortable and attractive to ride.
Visually, the handlebars are very similar to the Cross Bar or Magura handlebars. The small but subtle difference lies in the offset. This is because the Adventure handlebars are not as straight as the other two handlebars, but are cranked slightly more towards the rider (which gives you a more comfortable riding position). The handlebars are also a little higher.
The perfect compromise between looks and functionality.

The handlebars provide a more front-wheel-orientated riding position, giving the rider more control over the front wheel and motorbike.

ATTENTION: This handlebar is a FatBar handlebar. This means it is 28mm in the centre and 22mm on the outside.

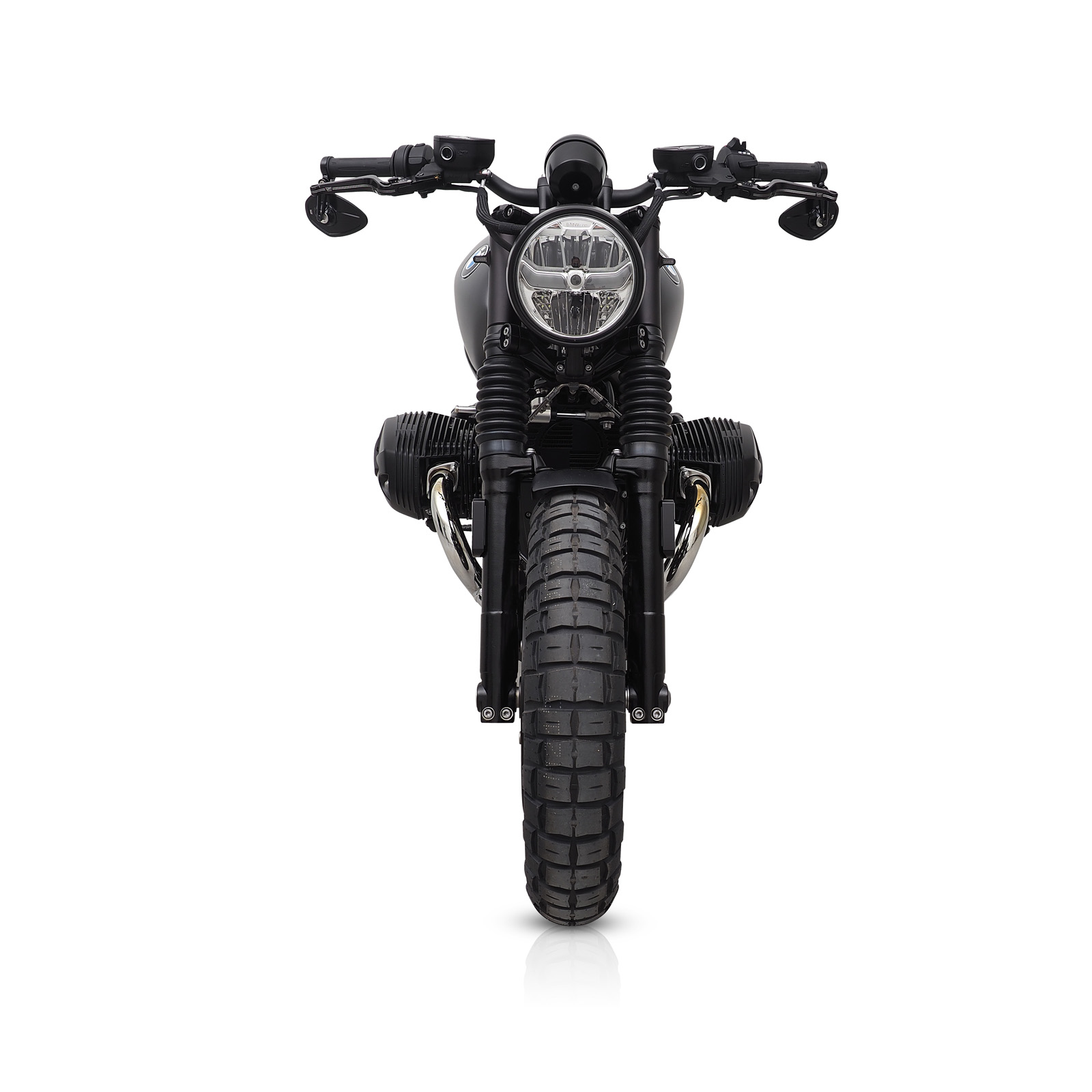

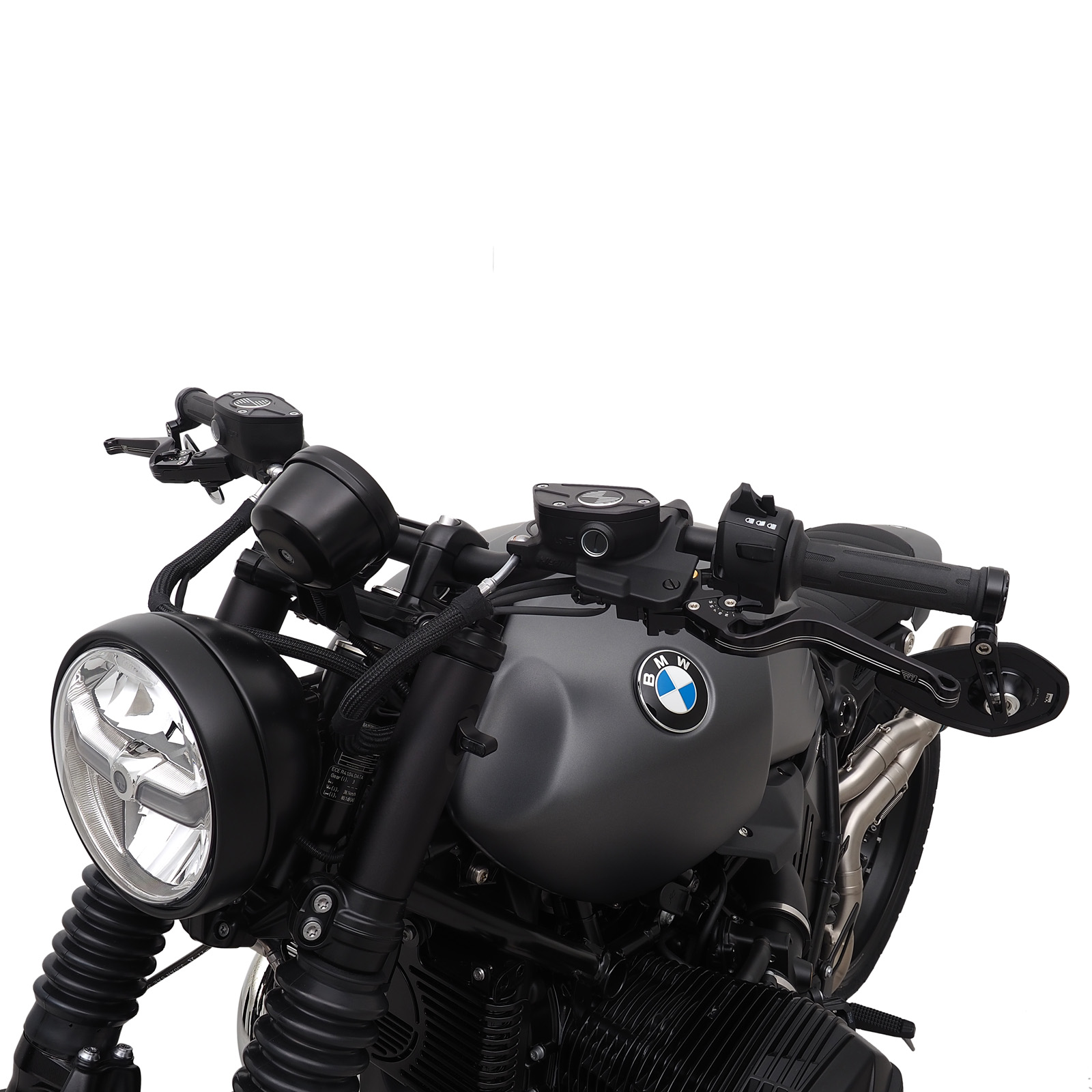

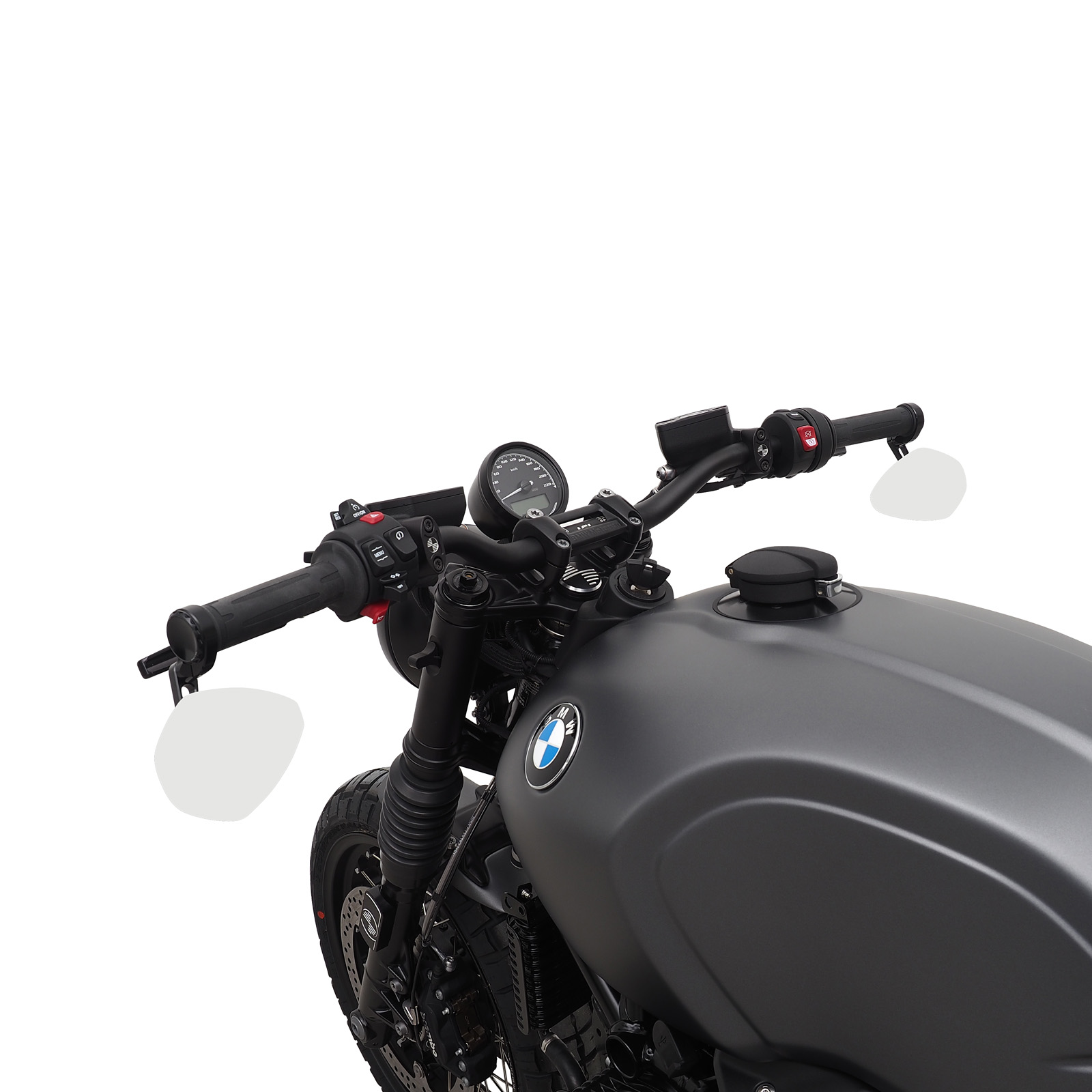

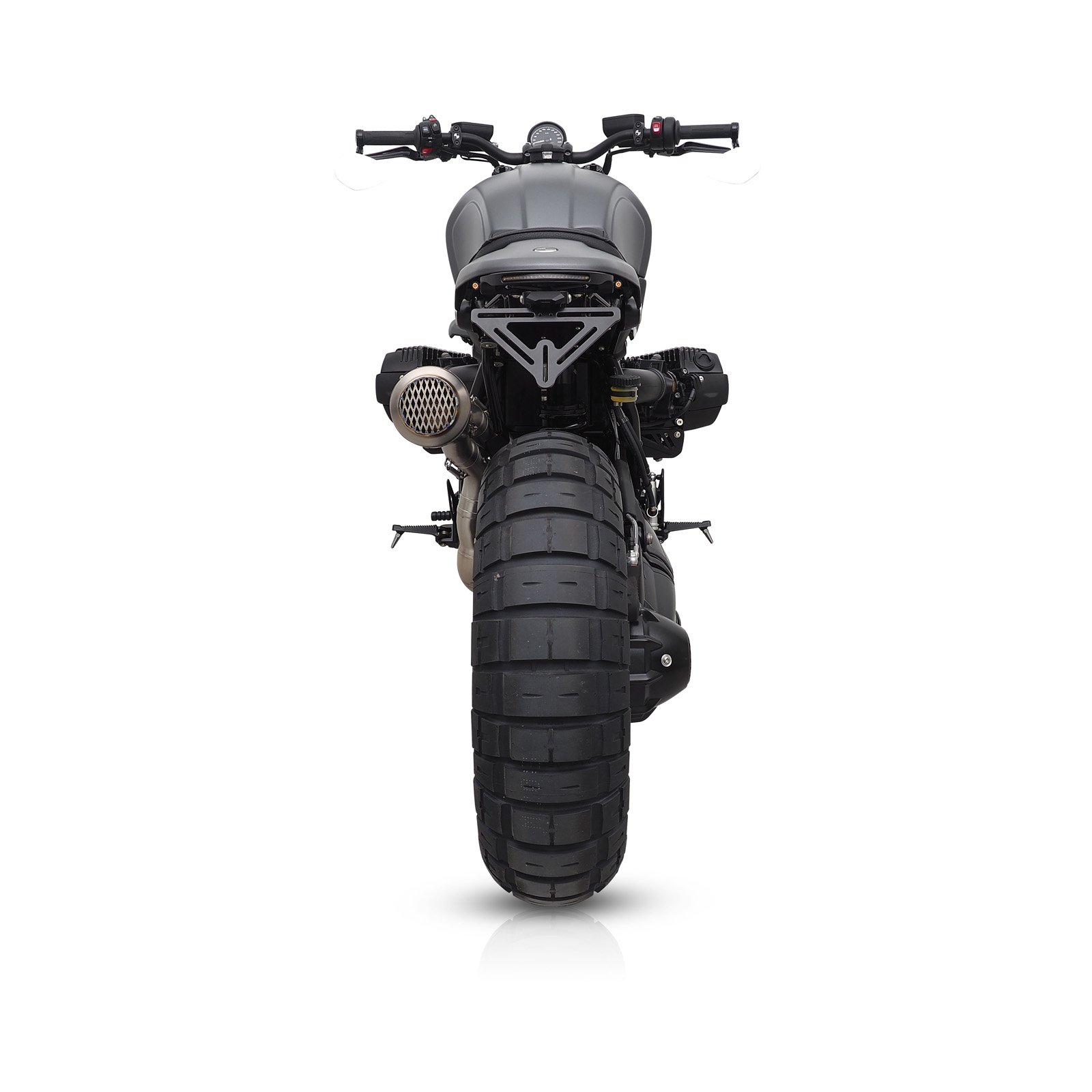

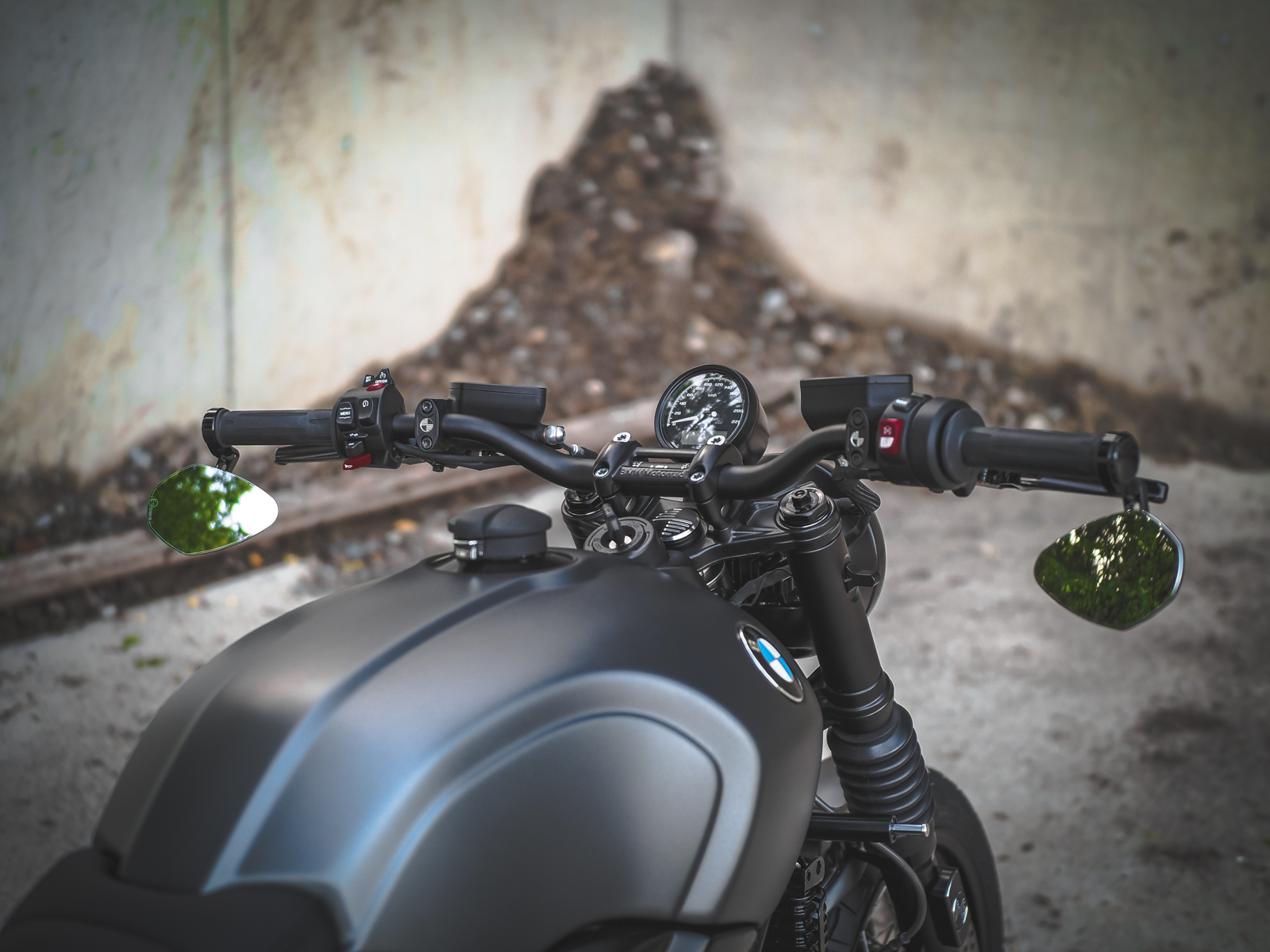

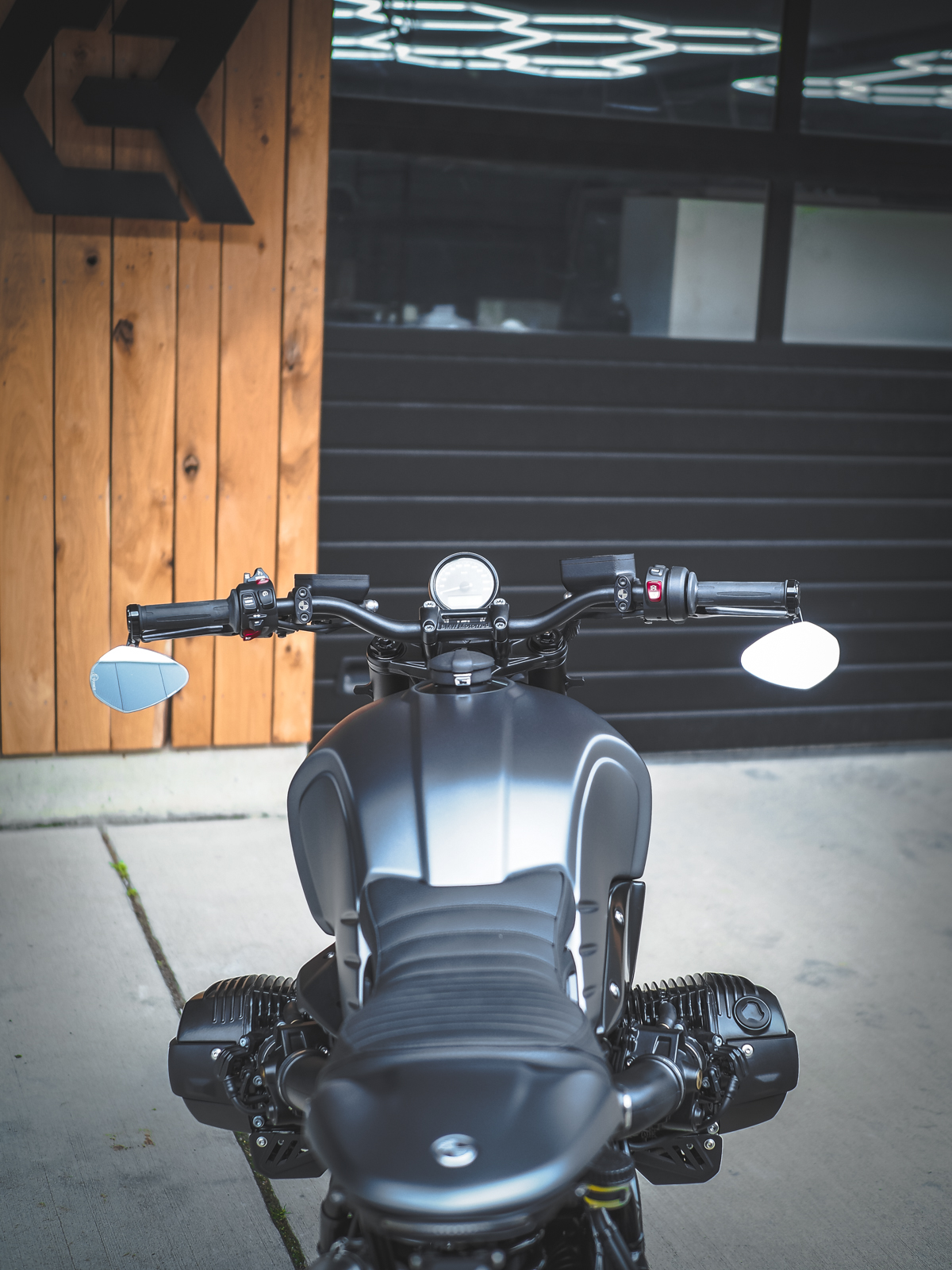

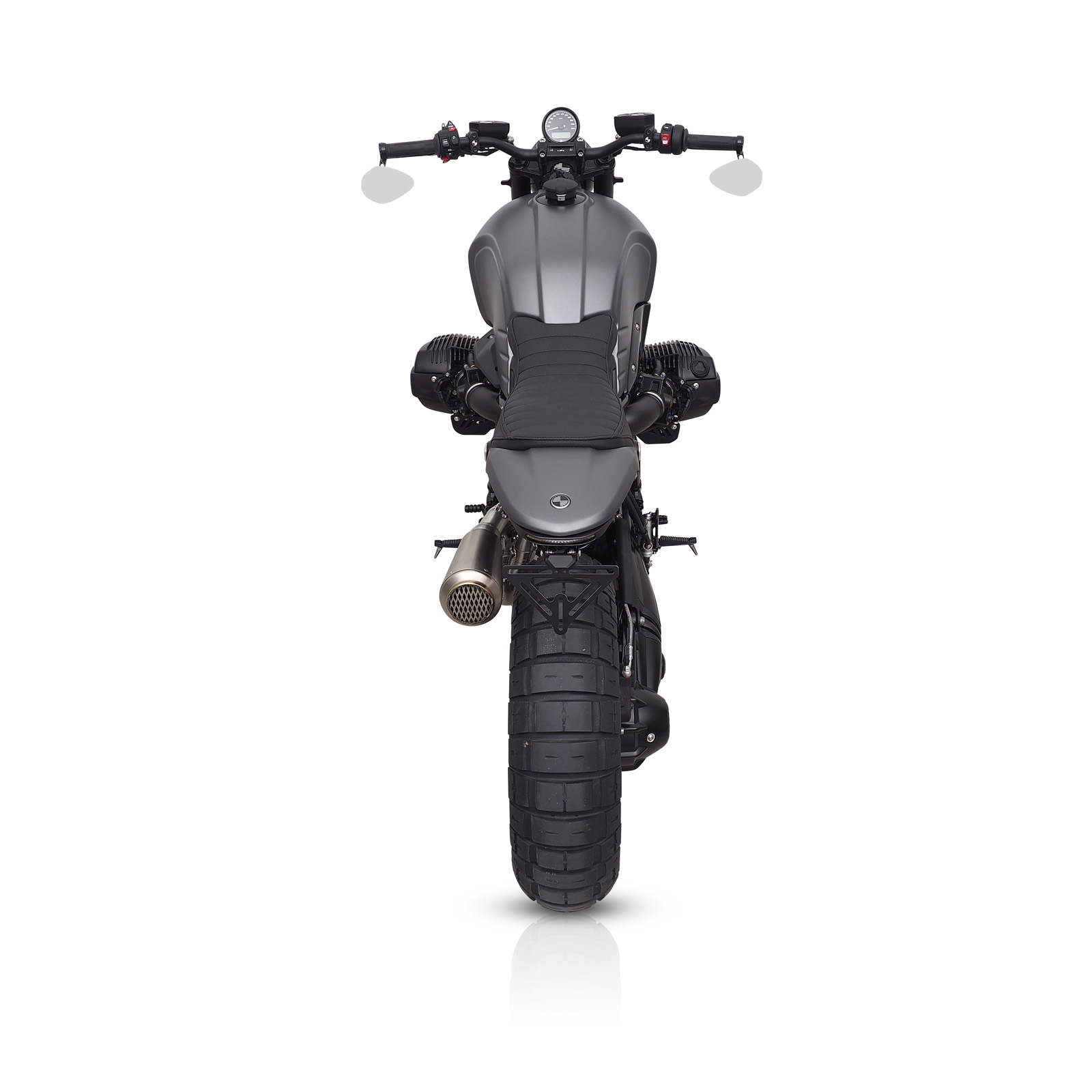

The handlebars can be installed on all BMW R nineT / R12 nineT motorbikes (no lines or cables need to be changed).
On most Triumph motorbikes, the handlebar clamp must be changed to 28mm. On Triumph models with 1" handlebars, the fittings must also be modified.
If you have any questions, please contact us.

The handlebars are made of aluminium and are supplied with ABE. All cables and wires are sufficient (i.e. the handlebars can simply be replaced). The original handlebar end caps will no longer fit (here we would recommend using the Rizoma handlebar end weights or converting to handlebar end indicators. See accessories article in this description).

In both black and silver, the handlebars have a beautiful, matt bead-blasted surface.

Dimensions: Width: 805mm / Height: 77mm / Depth: 114mm / Clamping range: 146mm / Grip tube length: 220mm

BMW R nine T

Um die originalen Armaturen verbauen zu können, müssen 2 kleine Löcher in den Lenker gebohrt werden (diese müssen genau gegenüber zueinander gesetzt werden). Wir bieten eine Bohrschablone an, um diese Löcher ganz schnell und einfach machen zu können. Siehe Zubehörartikel in dieser Beschreibung.

BMW R nineT
R nineT /5
R nineT Classic / Roadster EU 3
R nineT Classic / Roadster EU 4
R nineT Classic / Roadster EU 5
R nineT Pure EU 4
R nineT Pure EU 5
R nineT Scrambler EU 4
R nineT Scrambler EU 5
R nineT Urban GS EU 4
R nineT Urban GS EU 5
BMW R12
R12 Cruiser
R12 S
R12 nineT
